Here, we discuss normal distribution functions in R, plots, parameter setting, random sampling, density, cumulative distribution and quantiles.

The normal distribution with parameters \(\tt{mean}=\mu\), and \(\tt{standard\;deviation}=\sigma\) has probability density function (pdf) formula as:

\[f(x)={\frac {1}{\sigma {\sqrt {2\pi }}}}e^{-{\frac {1}{2}}\left({\frac {x-\mu }{\sigma }}\right)^{2}},\] for \(x\in\mathbb{R}\),

where \(\mu \in \mathbb {R}\), and \({\sigma>0}\).

\(e\) is \(\tt{Euler's\;number}\) with \(e \approx 2.71828\), and \(\pi\approx 3.14159\).

The mean is \(\mu\), and the variance is \(\sigma^2\).

The standard normal distribution has \(\mu = 0\), and \(\sigma = 1\).

1 Table of Normal Distribution Functions in R

The table below shows the functions for normal distributions in R.

Table of Normal Distribution Functions in R
Function	Usage
rnorm(n, mean=0, sd=1)	Simulate a random sample with \(n\) observations
dnorm(x, mean=0, sd=1)	Calculate the probability density at the point \(x\)
pnorm(q, mean=0, sd=1)	Calculate the cumulative distribution at the point \(q\)
qnorm(p, mean=0, sd=1)	Calculate the quantile value associated with \(p\)

2 Plot of Normal Distributions in R

Single distribution:

Below is a plot of the normal distribution function with \(\tt{mean}=3\) and \(\tt{standard\;deviation\;}=1.5\).

x = seq(-3, 9, 1/1000); y = dnorm(x, 3, 1.5)
plot(x, y, type = "l",
     xlim = c(-3, 9), ylim = c(0, max(y)),
     main = "Probability Density Function of Normal Distribution (3, 1.5)",
     xlab = "x", ylab = "Density",
     lwd = 2, col = "blue")
# Add line and legend
lines(c(3, 3), c(0, max(y)), col = "red")
legend("topleft", "mean = 3, sd = 1.5",
       lwd = 2,
       col = "blue",
       bty = "n")

Probability Density Function (PDF) of a Normal Distribution in R

Multiple distributions:

Below is a plot of multiple normal distribution functions in one graph.

x1 = seq(-7, 7, 1/1000); y1 = dnorm(x1, 0, 1)
x2 = seq(-7, 7, 1/1000); y2 = dnorm(x2, 0, 2)
x3 = seq(-7, 7, 1/1000); y3 = dnorm(x3, 1, 1)
plot(x1, y1, type = "l",
     xlim = c(-7, 7), ylim = range(c(y1, y2, y3)),
     main = "Probability Density Functions of Normal Distributions",
     xlab = "x", ylab = "Density",
     lwd = 2, col = "blue")
points(x2, y2, type = "l", lwd = 2, col = "red")
points(x3, y3, type = "l", lwd = 2, col = "green")
# Add legend
legend("topleft", c("mean = 0, sd = 1",
                    "mean = 0, sd = 2",
                    "mean = 1, sd = 1"),
       lwd = c(2, 2, 2),
       col = c("blue", "red", "green"),
       bty = "n")

Probability Density Functions (PDFs) of Normal Distributions in R

3 Examples for Setting Parameters for Normal Distributions in R

In the normal distribution functions, parameters are pre-specified as \(\mu=0\) and \(\sigma=1\), hence they do not need to be specified, unless they are to be set to different values.

For example, for pnorm(), the following are the same:

# The order of 0 and 1 matters here as the parameter names are not used.
# The first number 0 is mean, and 1 is standard deviation.
pnorm(2); pnorm(2, 0); pnorm(2, 0, 1)

[1] 0.9772499

[1] 0.9772499

[1] 0.9772499

# Or:
pnorm(2, mean = 0, sd = 1)

[1] 0.9772499

# Or:
pnorm(2, sd = 1, mean = 0)

[1] 0.9772499

4 rnorm(): Random Sampling from Normal Distributions in R

Sample 1000 observations from the normal distribution with \(\tt{mean} = 12\) and \(\tt{standard\;deviation\;} = 2\):

rnorm(1000, 12, 2)

set.seed(1234) # Line allows replication (use any number).
sample = rnorm(1000, 12, 2)
hist(sample,
     main = "Histogram of 1000 Observations from Normal Distribution
with Mean = 12 and Standard Deviation = 2",
     xlab = "x",
     col = "deepskyblue", border = "white")

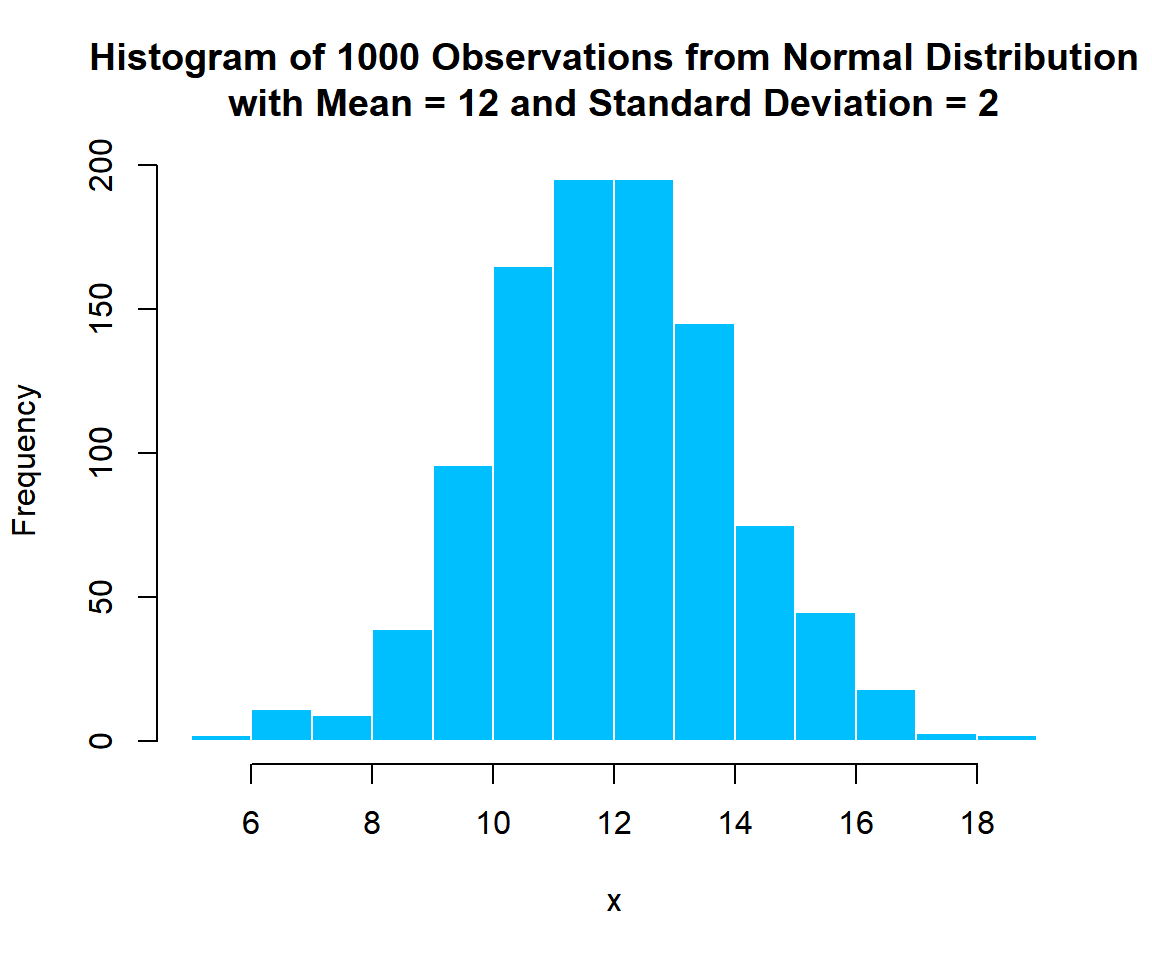

Histogram of Normal Distribution (12, 2) Random Sample in R

5 dnorm(): Probability Density Function for Normal Distributions in R

Calculate the density at \(x = 2\), in the normal distribution with \(\tt{mean} = 3\) and \(\tt{standard\;deviation\;} = 1.2\):

dnorm(2, 3, 1.2)

[1] 0.2349266

x = seq(-2, 8, 1/1000); y = dnorm(x, 3, 1.2)
plot(x, y, type = "l",
     xlim = c(-2, 8), ylim = c(0, max(y)),
     main = "Probability Density Function of Normal Distribution
with Mean = 3 and Standard Deviation = 1.2",
     xlab = "x", ylab = "Density",
     lwd = 2, col = "blue")
# Add lines
segments(2, -1, 2, 0.2349266)
segments(-3, 0.2349266, 2, 0.2349266)

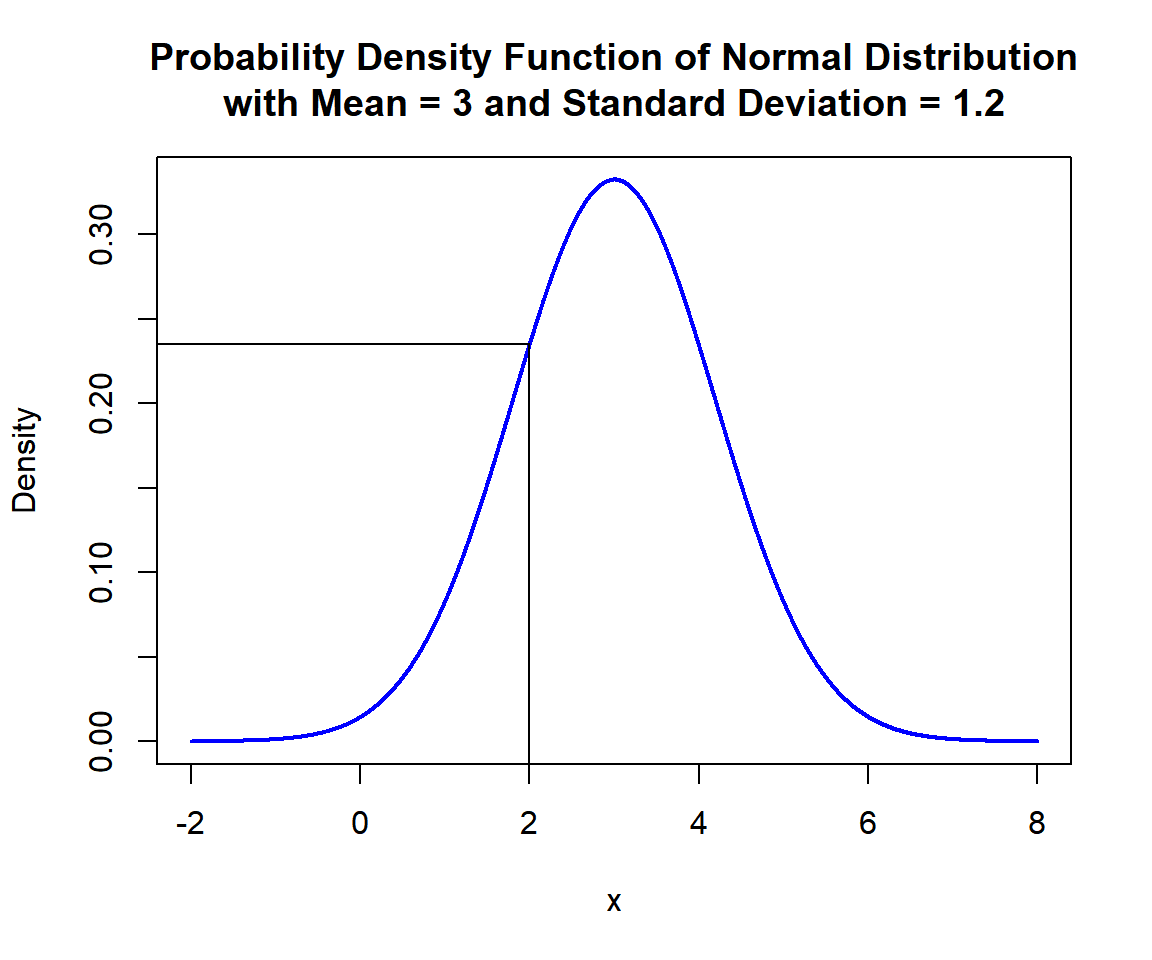

Probability Density Function (PDF) of Normal Distribution (3, 1.2) in R

6 pnorm(): Cumulative Distribution Function for Normal Distributions in R

Calculate the cumulative distribution at \(x = 3.2\), in the normal distribution with \(\tt{mean} = 4\) and \(\tt{standard\;deviation\;} = 1.8\). That is, \(P(X \le 3.2)\):

pnorm(3.2, 4, 1.8)

[1] 0.3283606

x = seq(-2, 10, 1/1000); y = pnorm(x, 4, 1.8)
plot(x, y, type = "l",
     xlim = c(-2, 10), ylim = c(0,1),
     main = "Cumulative Distribution Function of Normal Distribution
with Mean = 4 and Standard Deviation = 1.8",
     xlab = "x", ylab = "Cumulative Distribution",
     lwd = 2, col = "blue")
# Add lines
segments(3.2, -1, 3.2, 0.3283606)
segments(-3, 0.3283606, 3.2, 0.3283606)

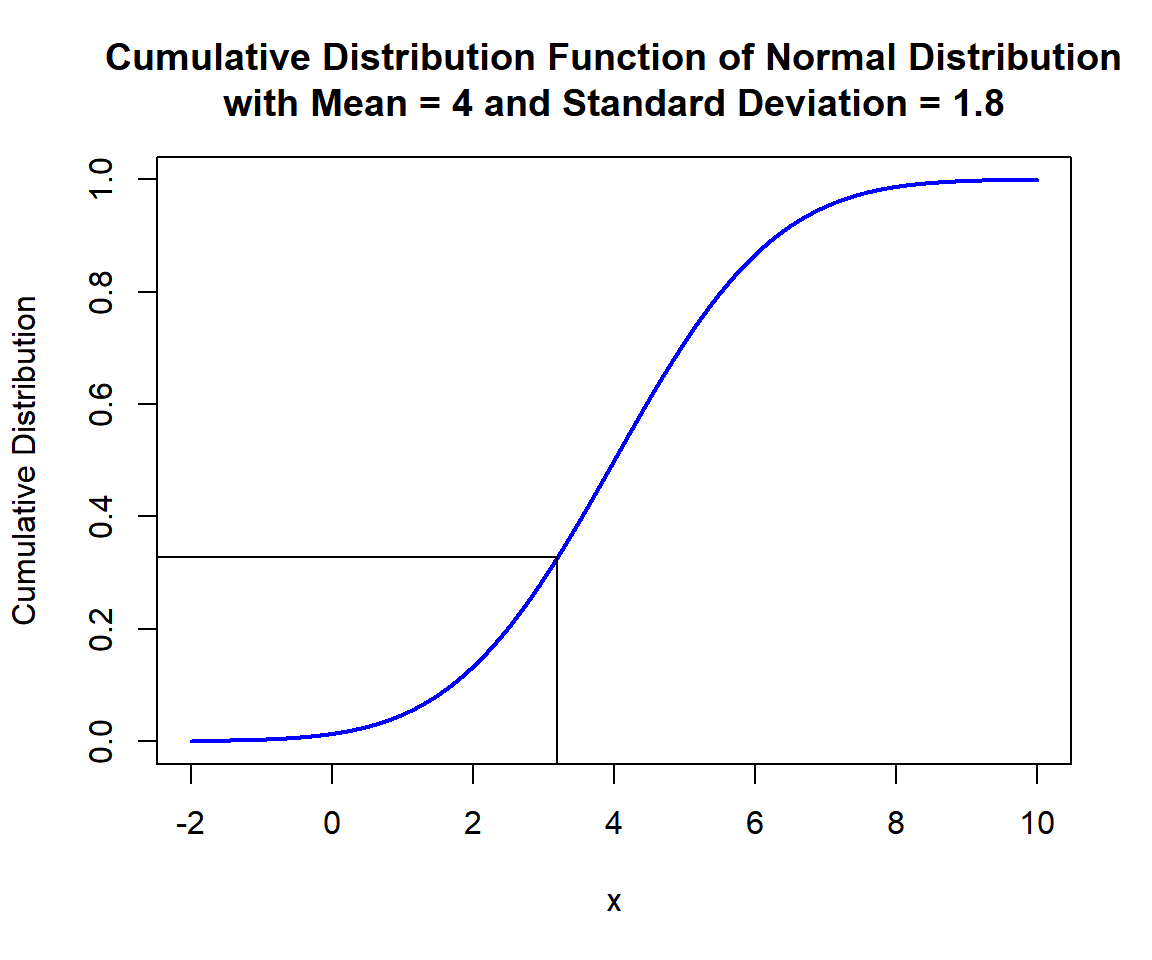

Cumulative Distribution Function (CDF) of Normal Distribution (4, 1.8) in R

x = seq(-2, 10, 1/1000); y = dnorm(x, 4, 1.8)
plot(x, y, type = "l",
     xlim = c(-2, 10), ylim = c(0, max(y)),
     main = "Probability Density Function of Normal Distribution
with Mean = 4 and Standard Deviation = 1.8",
     xlab = "x", ylab = "Density",
     lwd = 2, col = "blue")
# Add shaded region and legend
point = 3.2
polygon(x = c(x[x <= point], point),
        y = c(y[x <= point], 0),
        col = "limegreen")
legend("topright", c("Area = 0.3283606"),
       fill = c("limegreen"),
       inset = 0.01)

Shaded Probability Density Function (PDF) of Normal Distribution (4, 1.8) in R

For upper tail, at \(x = 3.2\), that is, \(P(X \ge 3.2) = 1 - P(X \le 3.2)\), set the "lower.tail" argument:

pnorm(3.2, 4, 1.8, lower.tail = FALSE)

[1] 0.6716394

x = seq(-2, 10, 1/1000); y = dnorm(x, 4, 1.8)
plot(x, y, type = "l",
     xlim = c(-2, 10), ylim = c(0, max(y)),
     main = "Shaded Upper Region: Probability Density Function of
Normal Distribution with Mean = 4 and SD = 1.8",
     xlab = "x", ylab = "Density",
     lwd = 2, col = "blue")
# Add shaded region and legend
point = 3.2
polygon(x = c(point, x[x >= point]),
        y = c(0, y[x >= point]),
        col = "limegreen")
legend("topright", c("Area = 0.6716394"),
       fill = c("limegreen"),
       inset = 0.01)

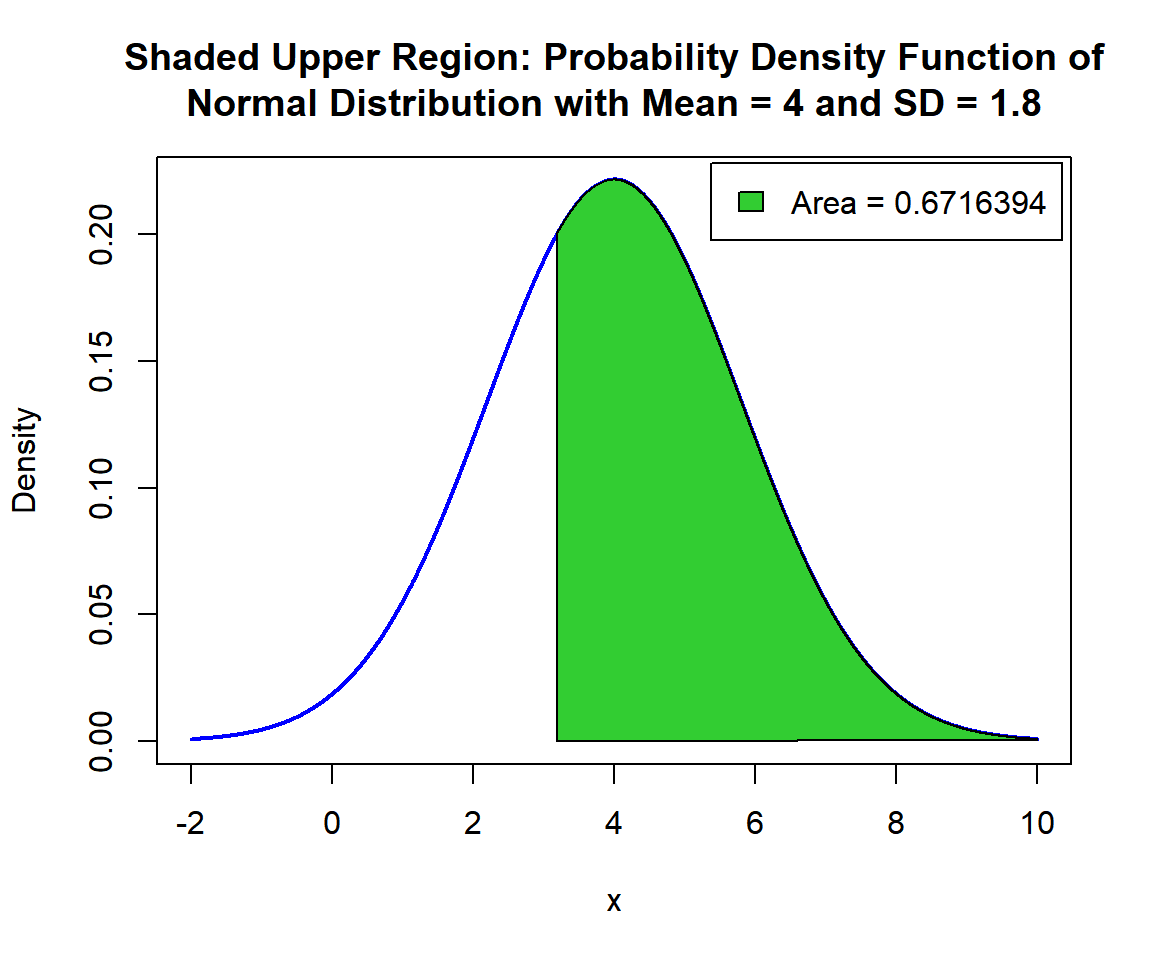

Shaded Upper Region: Probability Density Function (PDF) of Normal Distribution (4, 1.8) in R

7 qnorm(): Derive Quantile for Normal Distributions in R

Derive the quantile for \(p = 0.95\), in the normal distribution with \(\tt{mean} = 2.5\) and \(\tt{standard\;deviation\;} = 0.6\). That is, \(x\) such that, \(P(X \le x)=0.95\):

qnorm(0.95, 2.5, 0.6)

[1] 3.486912

x = seq(0.5, 4.5, 1/1000); y = pnorm(x, 2.5, 0.6)
plot(x, y, type = "l",
     xlim = c(0.5, 4.5), ylim = c(0,1),
     main = "Cumulative Distribution Function of Normal Distribution
with Mean = 2.5 and Standard Deviation = 0.6",
     xlab = "x", ylab = "Cumulative Distribution",
     lwd = 2, col = "blue")
# Add lines
segments(3.486912, -1, 3.486912, 0.95)
segments(-1, 0.95, 3.486912, 0.95)

Cumulative Distribution Function (CDF) of Normal Distribution (2.5, 0.6) in R

x = seq(0.5, 4.5, 1/1000); y = dnorm(x, 2.5, 0.6)
plot(x, y, type = "l",
     xlim = c(0.5, 4.5), ylim = c(0, max(y)),
     main = "Probability Density Function of Normal Distribution
with Mean = 2.5 and Standard Deviation = 0.6",
     xlab = "x", ylab = "Density",
     lwd = 2, col = "blue")
# Add shaded region and legend
point = 3.486912
polygon(x = c(x[x <= point], point),
        y = c(y[x <= point], 0),
        col = "limegreen")
legend("topright", c("Area = 0.95"),
       fill = c("limegreen"),
       inset = 0.01)

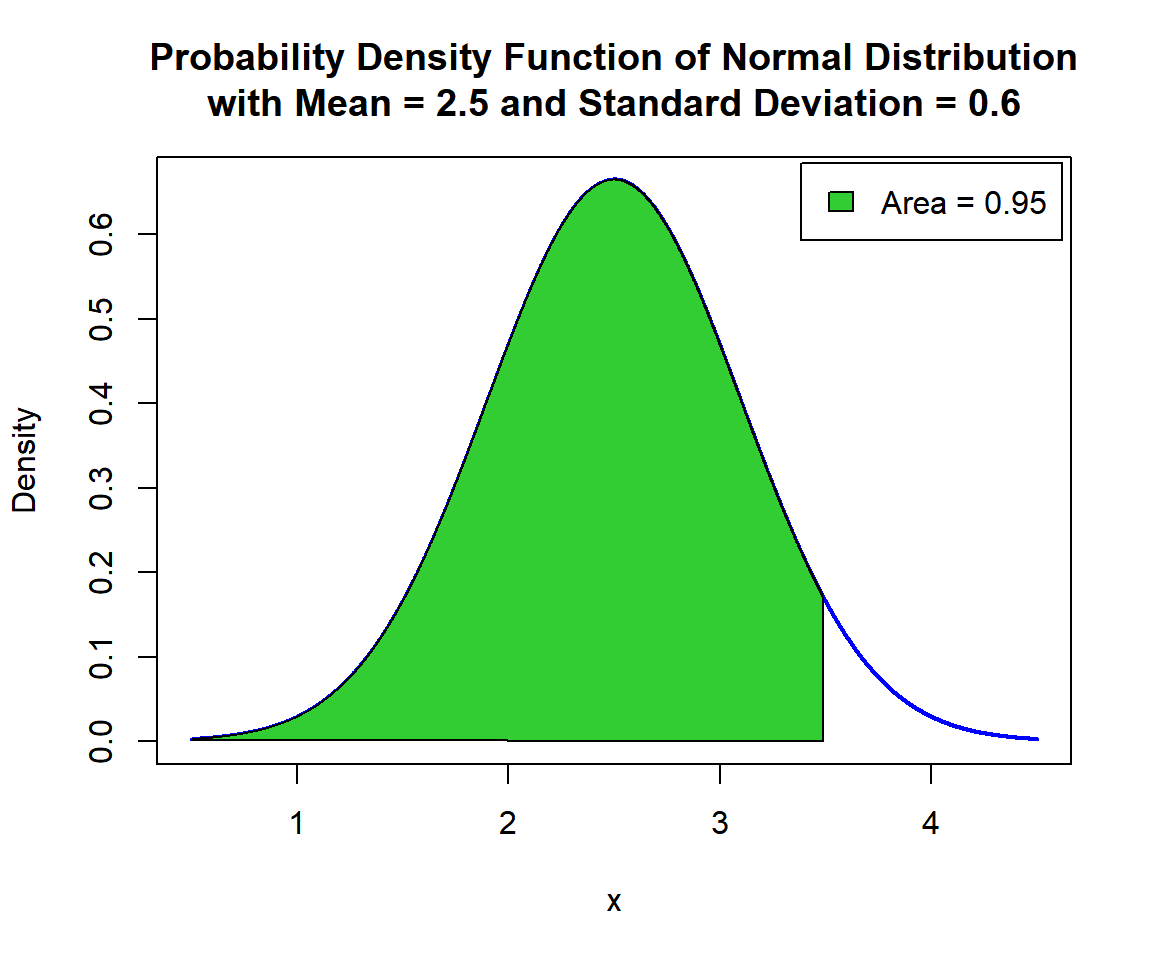

Shaded Probability Density Function (PDF) of Normal Distribution (2.5, 0.6) in R

For upper tail, for \(p = 0.05\), that is, \(x\) such that, \(P(X \ge x)=0.05\):

qnorm(0.05, 2.5, 0.6, lower.tail = FALSE)

[1] 3.486912

x = seq(0.5, 4.5, 1/1000); y = dnorm(x, 2.5, 0.6)
plot(x, y, type = "l",
     xlim = c(0.5, 4.5), ylim = c(0, max(y)),
     main = "Shaded Upper Region: Probability Density Function of
Normal Distribution with Mean = 2.5 and SD = 0.6",
     xlab = "x", ylab = "Density",
     lwd = 2, col = "blue")
# Add shaded region and legend
point = 3.486912
polygon(x = c(point, x[x >= point]),
        y = c(0, y[x >= point]),
        col = "limegreen")
legend("topright", c("Area = 0.05"),
       fill = c("limegreen"),
       inset = 0.01)

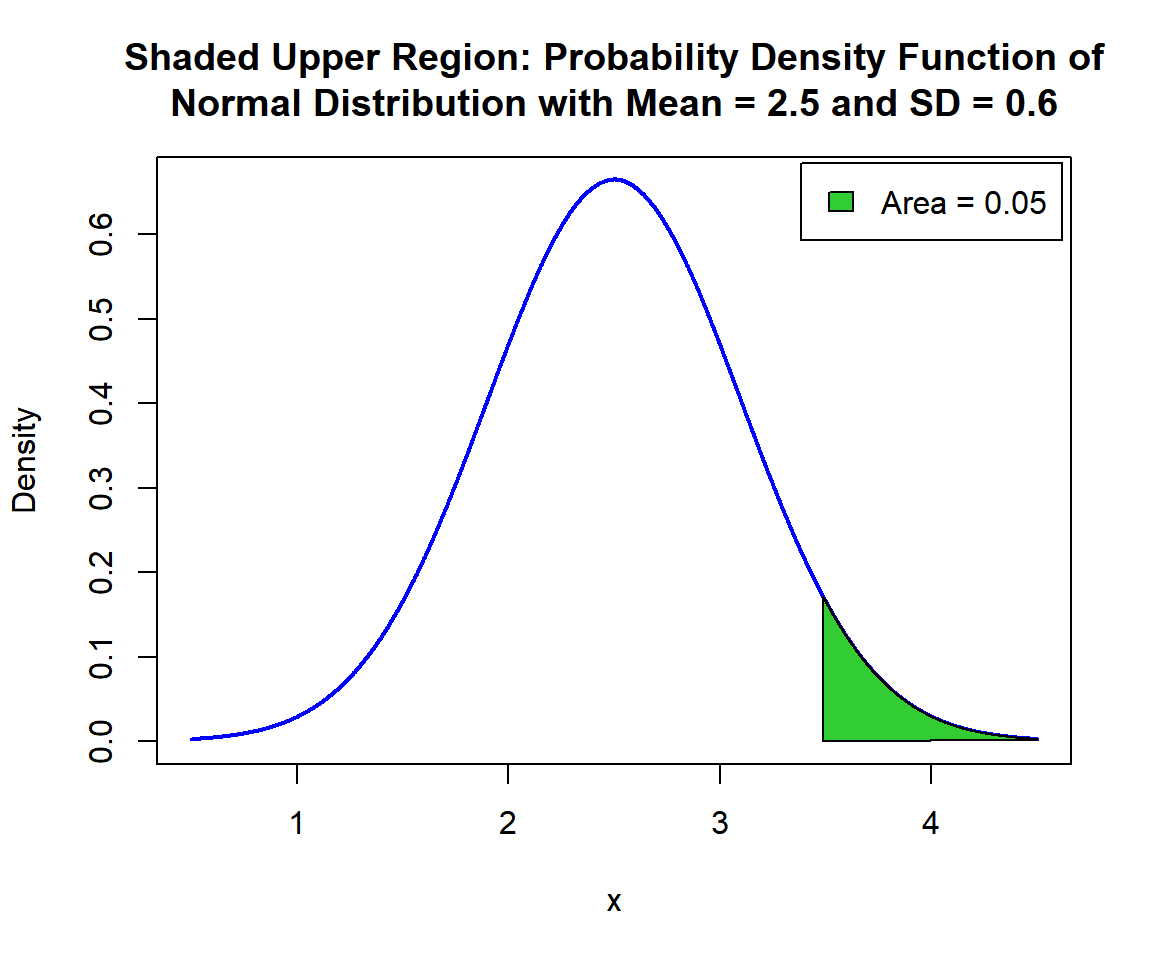

Shaded Upper Region: Probability Density Function (PDF) of Normal Distribution (2.5, 0.6) in R
